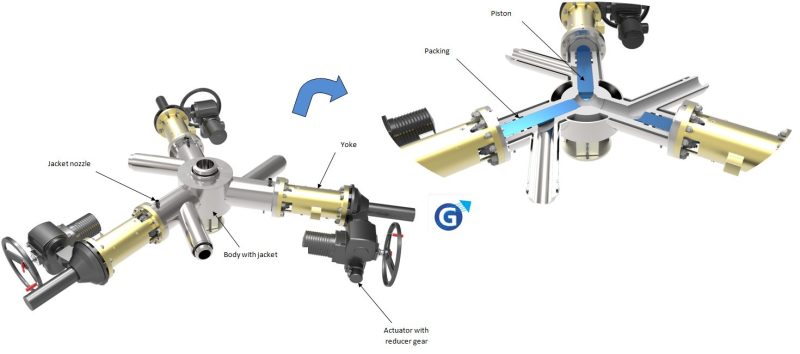

Our multiways (diverter) valve
Dead space free, particularly suitable for viscous/polymerising fluids and for low pressure loss.
DN 15 to 250
1/2″ to 10″
PN 10 to PN 420
150 to 2500 Lbs
Functions – Multiways (Diverter) valve
♦ multiways (diverter) : installed in process lines to collect, divert or split flows.
Operating principle – Multiways (Diverter) valve
– Shutter : Disc or piston
– Sealing : With stuffing box (repackable in service)
– Customised body design for easy adaptability on your installation
Fabrication – Multiways (Diverter) valve
- Construction materials : Carbon Steel (CS), Stainless Steel (SS), Duplex & Super Duplex, Inconel & Incoloy®, Titanium, Zirconium, Uranus® B6, Tantalum, Nickel, Hastelloy®, Monel
- Construction Methods : Fabricated (Welded), Cast
Uses – Multiways (Diverter) valve
- Service conditions : High pressure, High temperature, Low temperature, Abrasion, Corrosion, Vacuum
- Types of fluids : Liquids, Liquids with solid particles, Gas, Powder and powdery media, High viscosity fluids
- Applications : Plastics and polymers, General chemicals
Features & Options
Sealing system
♦ Metal/metal seated piston, disc or plug
♦ PTFE/metal seating for service temperature up to 180°C
♦ External tightness with bellows (option) for disc type multiway valves
Operation
Handwheel, double acting pneumatic actuator,single acting pneumatic actuator,hydraulic actuator,electric actuator,air cylinder.
Closing device
conical seated pistons,discs,plugs
Options – Multiways (Diverter) valve
– adaptation to any ends connection
– hard faced seating surfaces
– contoured piston for optimum flow (no dead areas)
– disc with aluminium seating surface
– removable seat
– vacuum tightness
– stem bellows (for disc type)
– temperature sensor
– additional draining and/or cleaning nozzles
– heating jacket
– firesafe design
– FDA grade gaskets and packing rings
– leak detector at stuffing box
– inside and/or outside polishing
– stroke limit or proximity switches
– dry air pneumatic actuator
– pneumatic actuator with manual override
– stainless steel pneumatic actuator
– actuator locking in closed position (safety)
– manual operator with locking mechanism
– chain handwheel
– extended manual operator, optionally with cardans
– manual operator mounted on ISO base for later adaptation of motor
– electric actuator with local / remote controls
CAUTION : some options are not compatible
