Our globe valve
For all liquids, powders, gases.
Optimized for high pressure.
With optional bellows for dangerous mediums.
DN 5 to 400
3/16″ to 16″
PN 10 to PN 420 acc. to size
150 to 2500 Lbs acc. to DN
Functions – Globe valve
♦ in-line on/off or control valve
♦ control valve

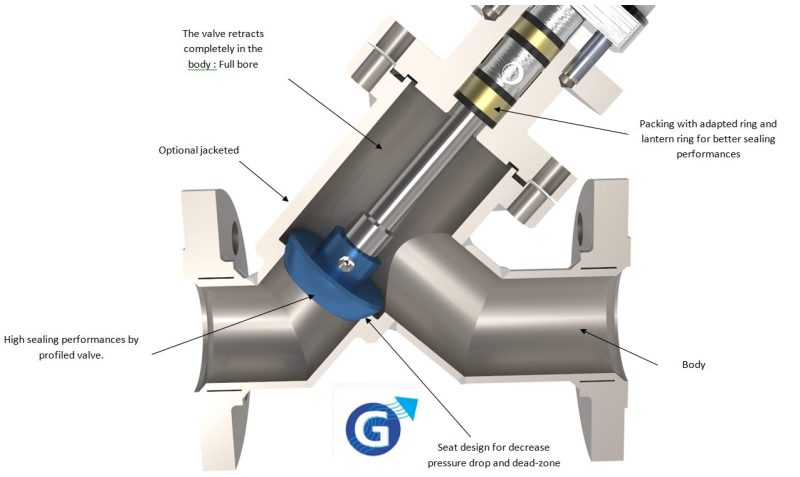

Operating principle – Globe valve
– Shutter : fixed or floating disc
– Sealing : With stuffing box (repackable in service)
– Y-type body (low pressure drop)
Fabrication – Globe valve
- Construction materials : Carbon Steel (CS), Stainless Steel (SS), Duplex & Super Duplex, Inconel & Incoloy®, Zirconium, Uranus® B6, Tantalum, Nickel, Hastelloy®, Monel
- Construction Methods : Fabricated (Welded), Cast, Solid
Uses – Globe valve
- Service conditions : High pressure, High temperature, Low temperature, Abrasion, Corrosion, Vacuum
- Types of fluids : Liquids, Liquids with solid particles, Gas, Powder and powdery media, High viscosity fluids
- Applications : Fine chemicals, Plastics and polymers, General chemicals, Petrochemicals, Nuclear and Naval / Submarine, Cryogenic service
Features & Options
Sealing system
Système d’étanchéité
♦ Disc sealing by PTFE-to-metal contact for a service temperature up to 180°C or by metal-to-metal contact.
♦ External tightness by means of bellows (see options list)
Operation
handwheel, double acting pneumatic actuator, single acting pneumatic actuator, hydraulic actuator, electric actuator, air cylinder.
Closing device
disc
Options – Globe valve
– Adaptation to any type of connection
– Hard faced seating surfaces
– Removable seat
– Vacuum tightness
– Bellows sealed stem
– Additional draining and/or cleaning nozzles
– Heating jacket
– Firesafe design
– FDA grade gaskets and packing rings
– Leak detector at stuffing box
– Inside and/or outside polishing
– Stroke limit or proximity switches
– Dry air pneumatic actuator
– Manual override for pneumatic actuator
– Stainless steel pneumatic actuator
– Closed actuator locking (safety)
– Manual operator with locking mechanism
– Chain handwheel
– Extended manual operator, optionally with cardans
– Manual operator mounted on ISO base for later motor adaptation
– Body by-pass system according to DN/Class
CAUTION: Some options are not compatible.
