Our sampling valve
To analyse the evolution of the product.
For liquids, liquids with solid parts, powders.
DN 15 to DN 50
1/2″ to 2″
PN 10 to PN 50
150 to 300 Lbs
Functions – Sampling valve
♦ For taking samples : in tank, reactor or in-line

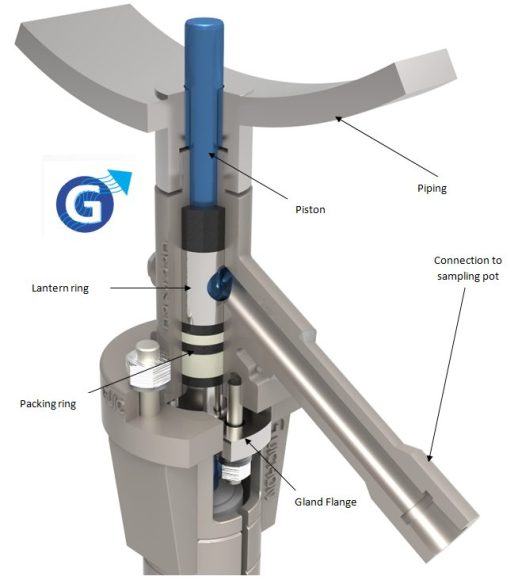

Operating principle – Sampling valve
– Shutter : Piston or capacitive ball
– Connection of the sampling pot according to customer’s requirement
– Accurate mesurement of the sampling
Fabrication – Sampling valve
- Construction materials : Carbon Steel (CS), Stainless Steel (SS), Duplex & Super Duplex, Inconel & Incoloy®, Titanium, Zirconium, Uranus® B6, Tantalum, Nickel, Hastelloy®, Monel
- Construction Methods : Fabricated (Welded), Cast, Solid
Uses – Sampling valve
- Service conditions : High temperature, Low temperature, Abrasion, Corrosion, Vacuum
- Types of fluids : Liquids, Liquids with solid particles, Gas, Powder and powdery media, High viscosity fluids
- Applications : Fine chemicals, Plastics and polymers, General chemicals, Petrochemicals, Nuclear and Naval, Cryogenic service
Features & Options
Sealing system
♦ Metal-to-metal sealing with conical piston
♦ Radial seal with packing, o’rings, etc.
♦ PTFE-to-metal tightness for service temperature up to 180°C for ball types
Operation
Handwheel or crank according to size,handle + return spring (dead man handle),double acting pneumatic actuator,single acting pneumatic actuator,electric actuator,air cylinder.
Closing device
capacitive ball, straight piston, piston with conical seating surface
Options – Sampling valve
– adaptation to any type of connection
– hard faced seating surfaces according
– disc O’ring
– removable seat
– vacuum tightness
– additional draining and/or cleaning nozzles
– sterilization
– isolating valve at outlet branch
– stainless steel sampling pot
– heating jacket
– firesafe design
– FDA grade gaskets and packings
– inside and/or outside polishing
– leak detector at stuffing box
– stroke limit or proximity switches
– dry air actuator
– manual override for pneumatic actuator
– stainless steel pneumatic actuator
– actuator locking system (safety)
– manual operator with locking mechanism
– manual operator extension, if required with cardans
– manual operator mounted on ISO base for later adaptation of actuator
– electric actuator with local/remote controls
CAUTION : some options are not compatible
